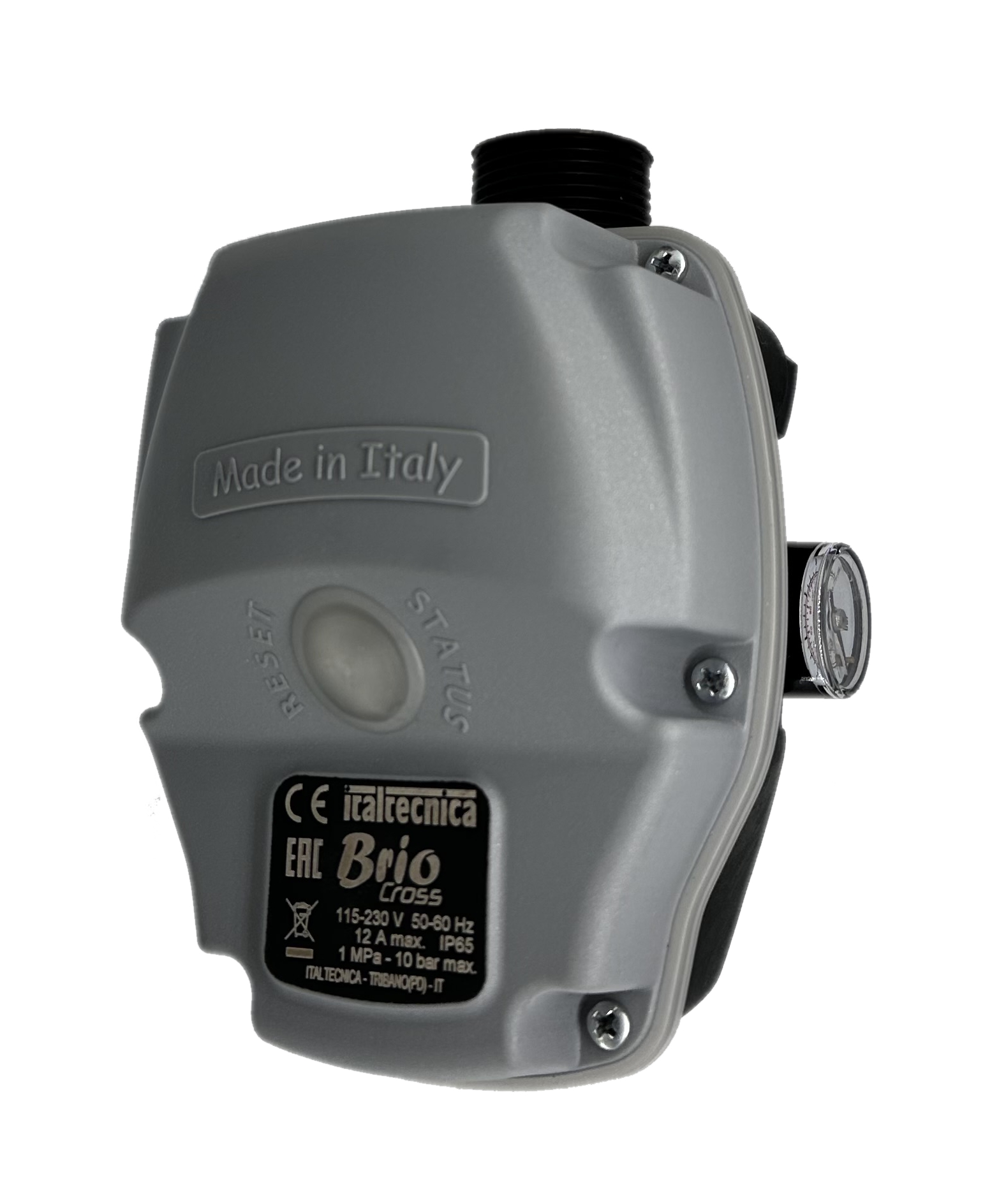

PRESSURE AND FLOW CONTROLLER BRIO CROSS
Electronic device for electric pump control
Starts the pump at the minimum water request and protects against dry running
Ispectionable and integrated check valve, integrated pressure gauge, smart autoreset and anti-seize function are standard.Compact, adjustable, smart. One word? Brio.
Show full description
It automatizes the start of the electric pump after a pressure decrease (taps opening) and its stop when the fluid flow interrupts at the maximum pressure level of the electric pump (taps closing).
It completely replaces the traditional water system with pressure switch and pressure tank.
Automatic reset up to 10 attempts.
24h anti-block protection.
Protection against dry running.
Adjustable starting pressure.
Easily replaceable electronic printed circuit board.
No need of maintenance.
Installation in a by-pass mode.
Pressure drops: 0,4 bar at 100 lt/min.
Minimum flow 2,0 lt/min.
90 degree hydraulic connection to favor a fast and easy installation in any situation.
Power supply:
115-230Vac ±15% 50/60Hz
Max rated current:
12A (2Hp) 1500W
Starting pressure range:
1-3,5bar (1,5 bar factory setting)
Max allowable pressure:
10 bar
Protection degree:
IP 65
Fluid temperature:
5°C - 55°C
Ambient temperature:
5°C - 45°C
Hydraulic connections:
1''M
