AccessoriesMechanical pressure switches PS

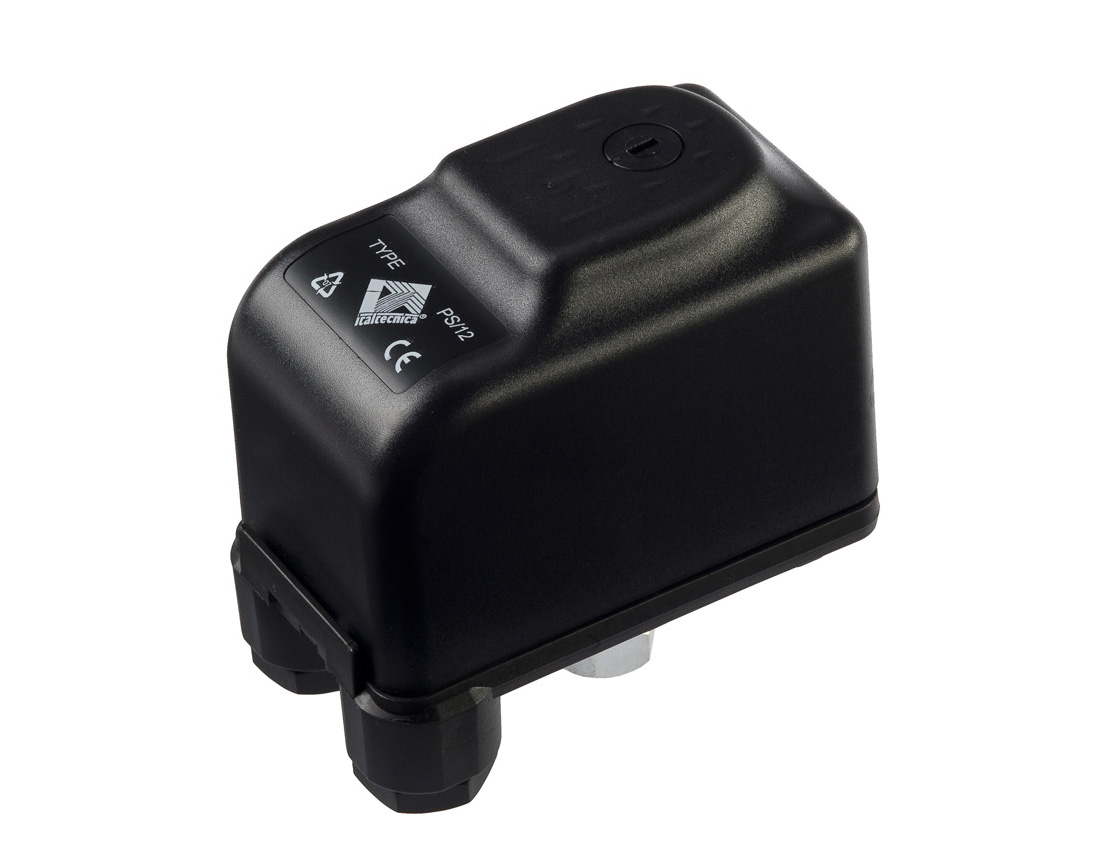

Pressure switch with SPDT contact
- Series of pressure switches for control applications and supervision in different technological systems (fi re fi ghting units, building machineries, systems for water treatment, etc)
- The pressure switch works mechanically per action of the pressure in the system and it doesn't need any additional electrical power supply
- SPDT contact (single pole double throw COM.-N.O.-N.C.)
- Electrical terminals: 3 rising clamp terminals (COM. + N.O. + N.C.)
- NBR rubber membrane with textile insert
- ¼" F hydraulic connection made of galvanized steel
- Protection degree IP44
- Max ambient temperature 55°C
- Tear resistant cable clamps
| PS/3 | PS/3D | PS/5 | PS/5D | PS/12 | PS/12D | PS/16D | |
| Max. working pressure (Bar): | 5 | 5 | 12 | 12 | 12 | 12 | 16 |
| Setting range (Bar): | 0.9 - 2.0 | 0.9 - 5.0 | 1.7 - 5.0 | 1.7 - 7.5 | 2.5 - 10.0 | 2.5 - 12.0 | 2,5-12,0 |
| Factory setting | 1,0-1,3 | 1,0-2 | 2,4-2,8 | 2,4-3,5 | 5,0-5,8 | 5,0-7,0 | 5,0-8,0 |
| Minimum differential (Bar): | 0.2 | 0.4 | 0.5 | 0.5 | 0.8 | 0.8 | 0,8 |
| Maximum differential (Bar): | 0.2 | 2.5 | 0.7 | 3.3 | 1.4 | 3.8 | 3,8 |
| Maximum load: | 5 A 250 V~ | ||||||
| Fluid temperature |
5oC - 55o
|
||||||
| Ambient temperature | 5oC - 55o | ||||||
| Protection degree | IP44 | ||||||
| Connections | 1/4''F | ||||||
Contacts arrangement
Setting diagram PS/3
Setting diagram PS/3D
Setting diagram PS/5 + PS/5D
Setting diagram PS/12 + PS/12D
![](https://www.italflexo.cz//media/com_xkatalog/images/listings/cfvs/image/24.jpg "1/4" F GAS")
1/4" F GAS
Female
Customized settings
Customized settings
Special springs for not standard adjustment ranges
Special springs for not standard adjustment ranges
Graduated scale
Graduated scale on the device for an easy adjustment of ther cut-in pressure
Transparent cover
Transparent cover
Protection degree IP54
