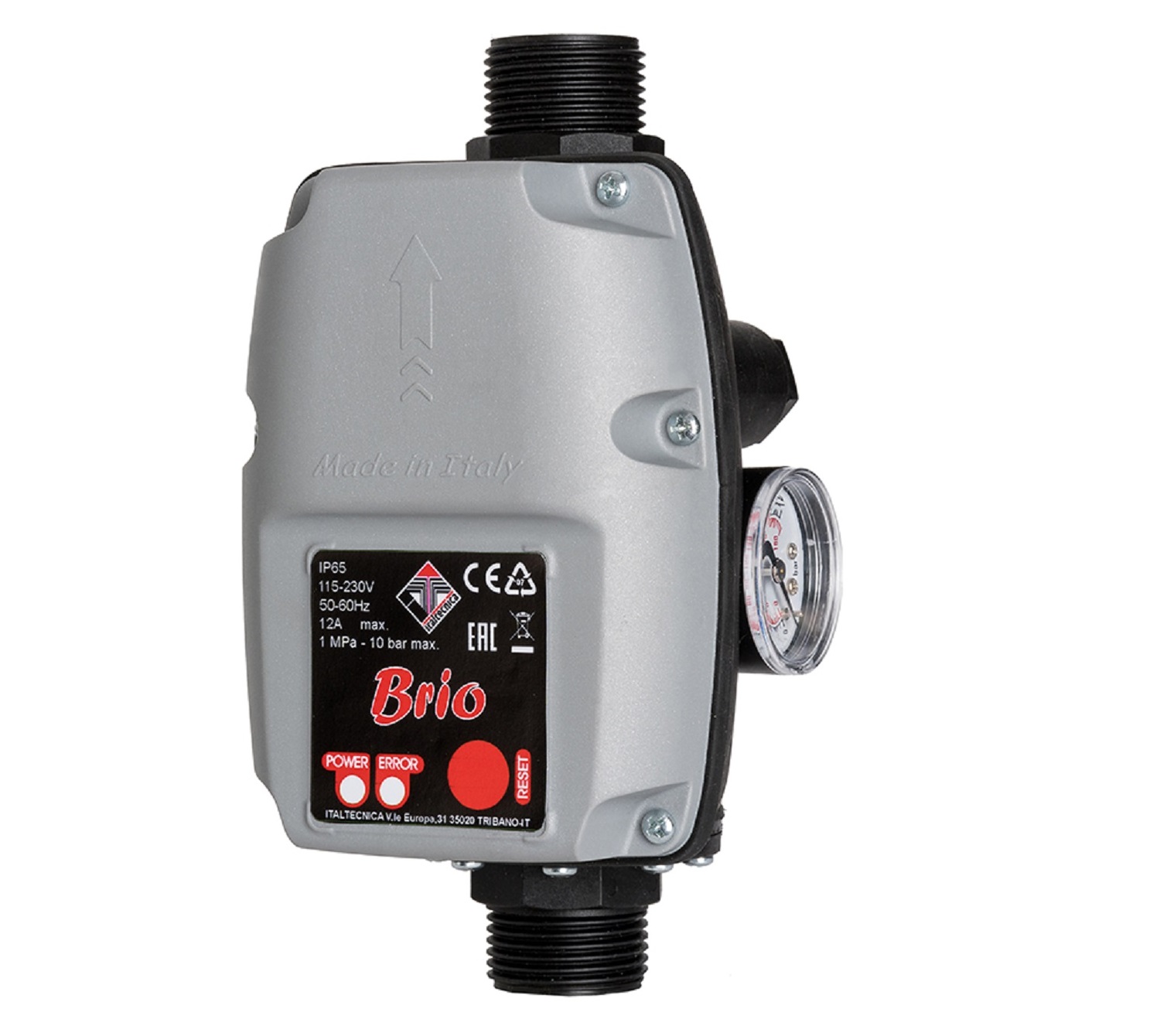

AccessoriesPressure and flow controllers BRIO
Electronic device for electric pump control
- Starts the pump at the minimum water request and protects against dry running
- Ispectionable and integrated check valve, integrated pressure gauge, smart autoreset and anti-seize function are standard.
- Compact, adjustable, smart. One word? Brio.
- It automatizes the start and stop operations of single-phase electric pumps (surface, vertical and submersible).
- It completely replaces the traditional water system with pressure switch and pressure tank.
- It starts the electric pump after a pressure decrease (taps opening) and stops it when the fluid flow interrupts at the maximum pressure level of the electric pump (taps closing).
- Protection against dry running.
- Inspectionable and integrated check valve
- Smart autoreset tries to restart the pump with variable time interval at each attempt,after the block for dry running
- Anti-seize motor function start the pump every 24th of stand-by to avoid the rotor´s locking.
- Adjustable starting pressure.
- Installation in any position - both vertical and horizontal
- Easily replaceable electronic printed circuit board.
- No maintenance required
- Installation in a by-pass mode
- Minimum flow for continuous pump working reduced to 2.5 It/min
- Press drop, thanks to the new internal design, at 100 It/min it´s only 0.45 bar
| Power supply: | 115-230Vac ±15% 50/60Hz |
| Max rated current: | 12A (2Hp) 1500W |
| Starting pressure range: |
1-3,5bar
(1,5 bar standard)
|
| Max allowable pressure: | 10 bar |
| Protection degree: | IP 65 |
|
Fluid temperature:
|
5o C - 55o C |
| Ambient temperature: | 5o C - 45o C |
| Hydraulic connections: | 1''M |
