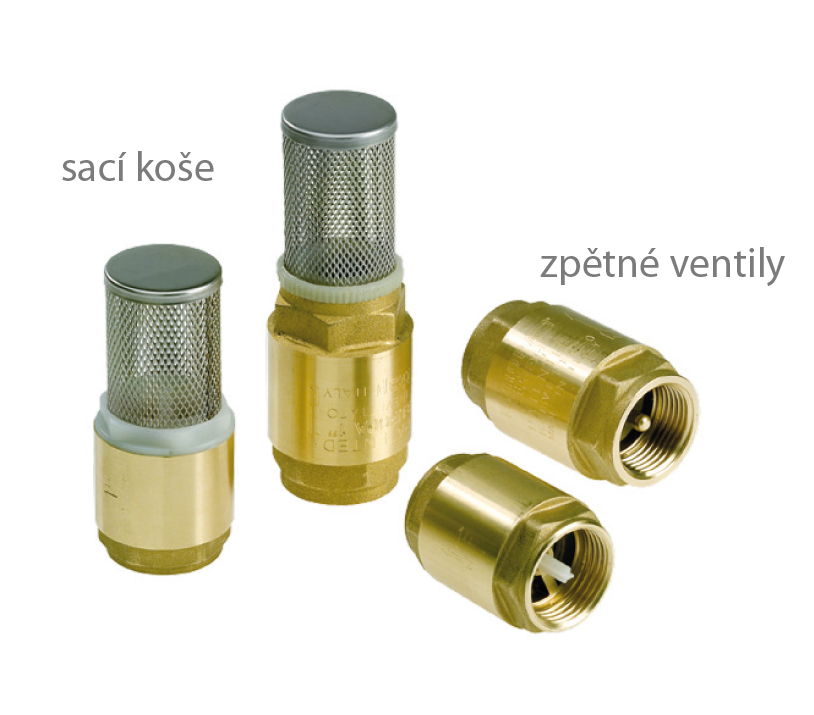

Check valves and foot valves in brass
Type | Thread | Max. working pressure |
Standard chech valve F/F (VARY) | ¼"-⅜"- ½"-¾"-1" | 12 bar |
1"¼ - 1"½ - 2" | 10 bar | |
2"½ - 3" - 4" | 8 bar | |
Standard chech valve FF for higher pressures (VARE) | ⅜" - ½" - ¾" - 1" | 25 bar |
1"¼ - 1"½- 2" | 18 bar | |
2"½-3"-4" | 12 bar | |
Foot valve with embodied stainless filter (VAFY) | ⅜"-½" - ¾" - 1" | 10 bar |
1"¼ - 1"½ - 2" | 8 bar | |
2"½ - 3" - 4" | 6 bar | |
Foot valve with stainless steel filter (VAFE) | ⅜" - ½" - ¾" - 1" | 25 bar |
1"¼ - 1"½ - 2" | 18 bar | |
2"1/2 - 3" - 4" | 12 bar |
